Diecast
Diecasting is regarded as a widely used method of casting and metal pieces production at a low melting point
Diecasting is the shortest way to produce a metal product via casting method and is functional in automotive industry, aerospace industry, production of industrial machines and suchlike
This productive method includes various advantages such as high rate of output, high quality, less superficial, shallow and internal flaws, and production of complex thin pieces with high strength and molecular cohesion
Generally, diecasting process consists of metallurgy, electric, electronic, mechanic, hydraulic and pneumatic sciences
:Steps of diecast pieces injection
Fastening the cast

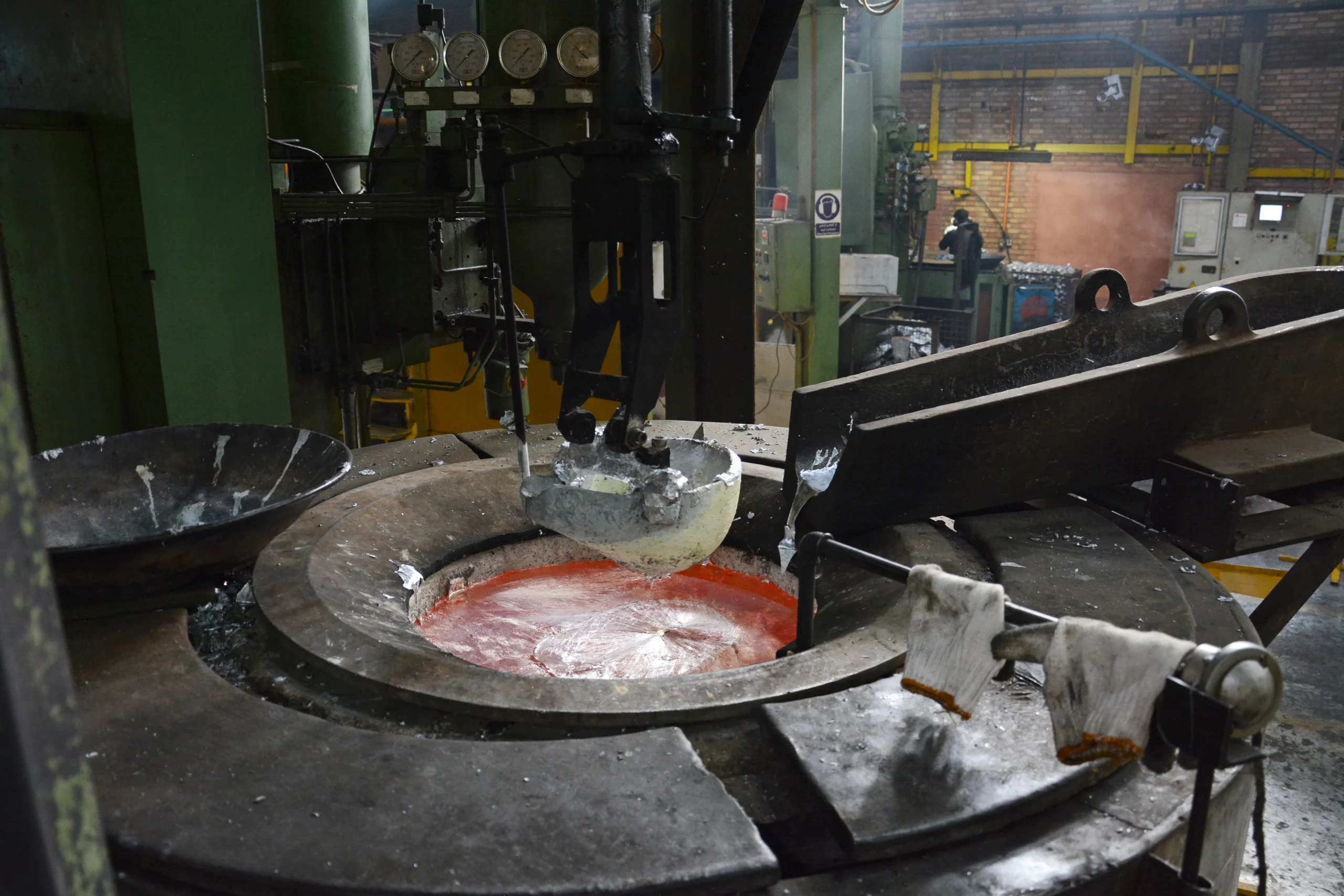

Pouring molten metal into the cast chamber
Injecting the molten metal with speed and pressure
Retaining the pressure in the fastened casts to achieve better formation and high cohesion

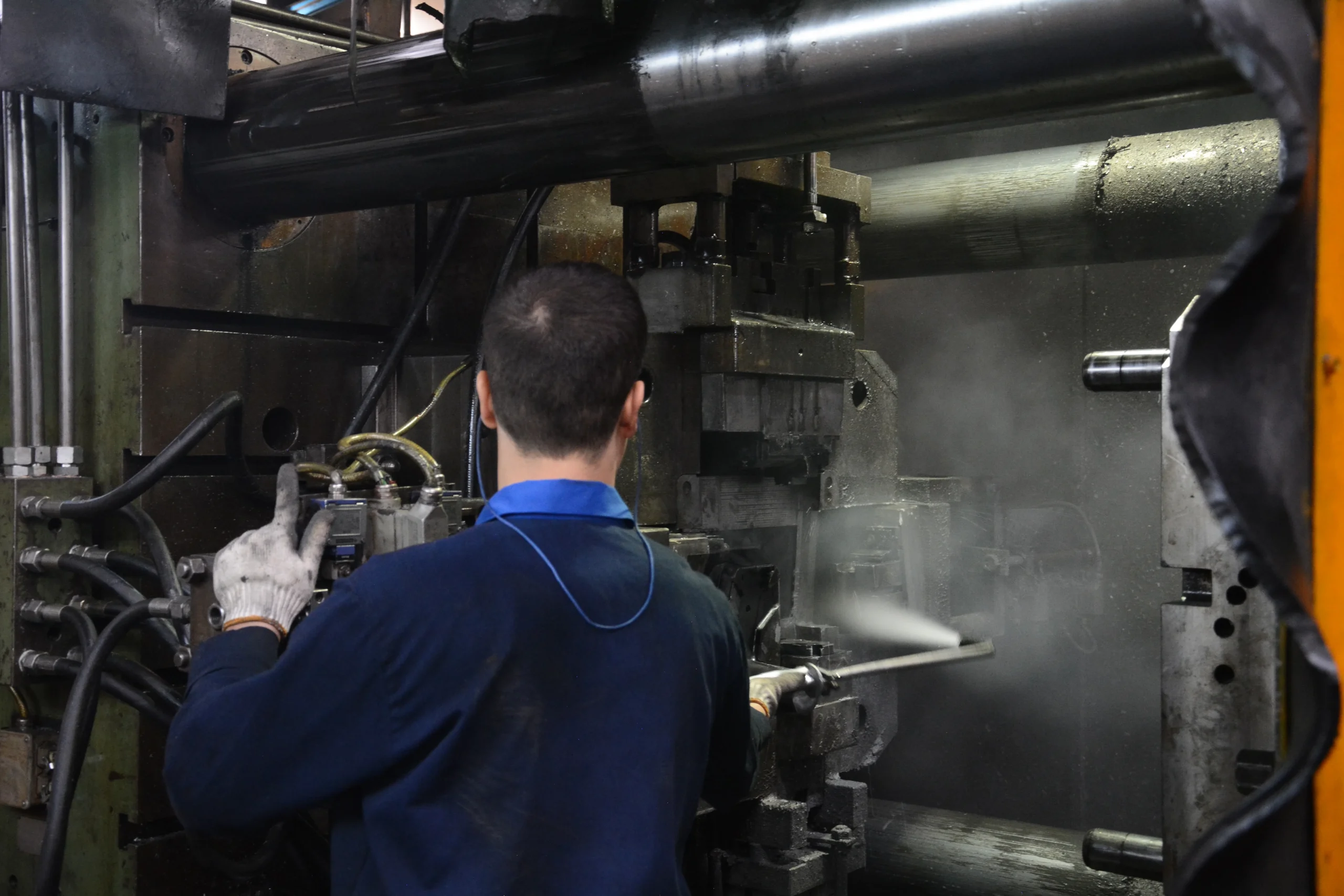

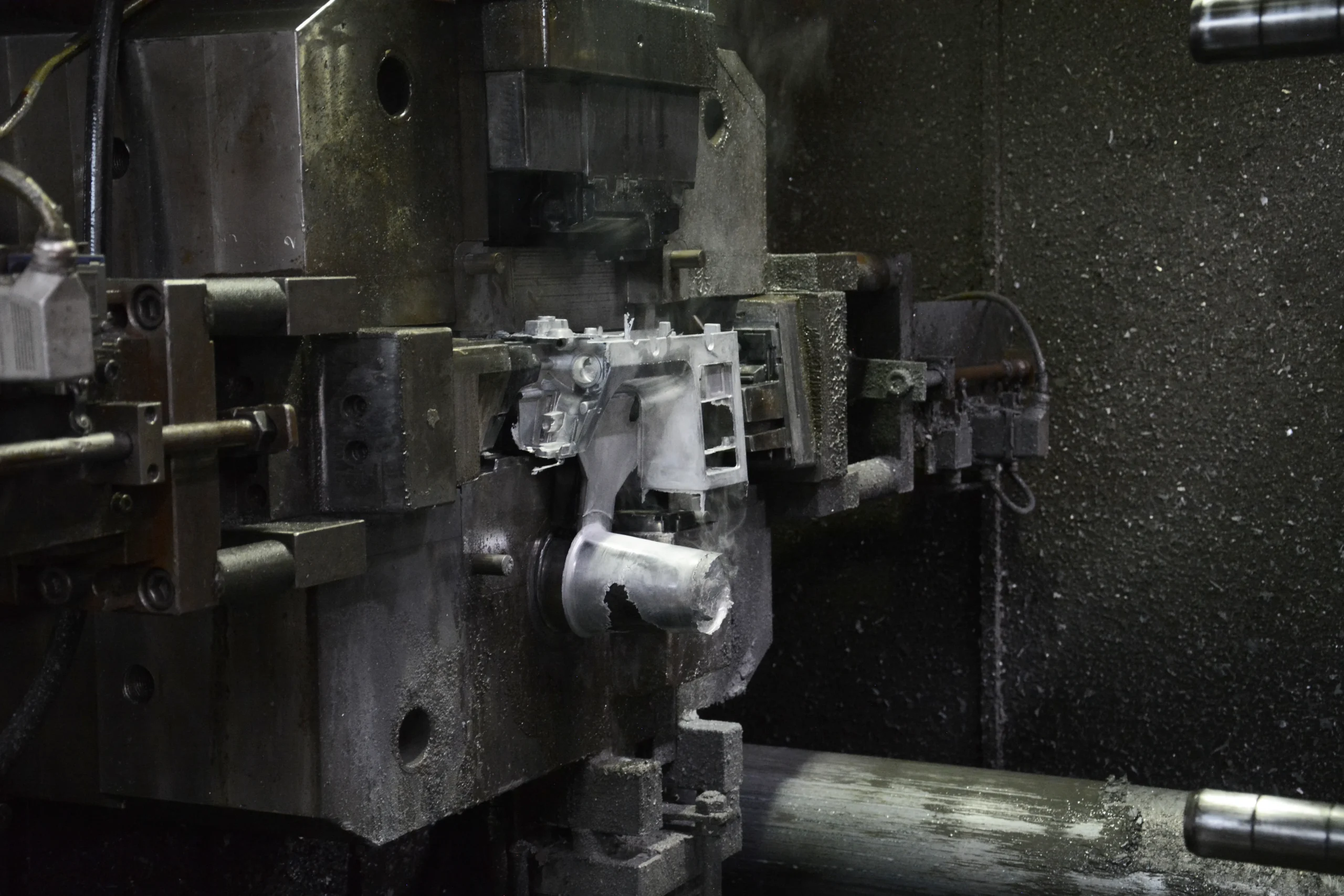

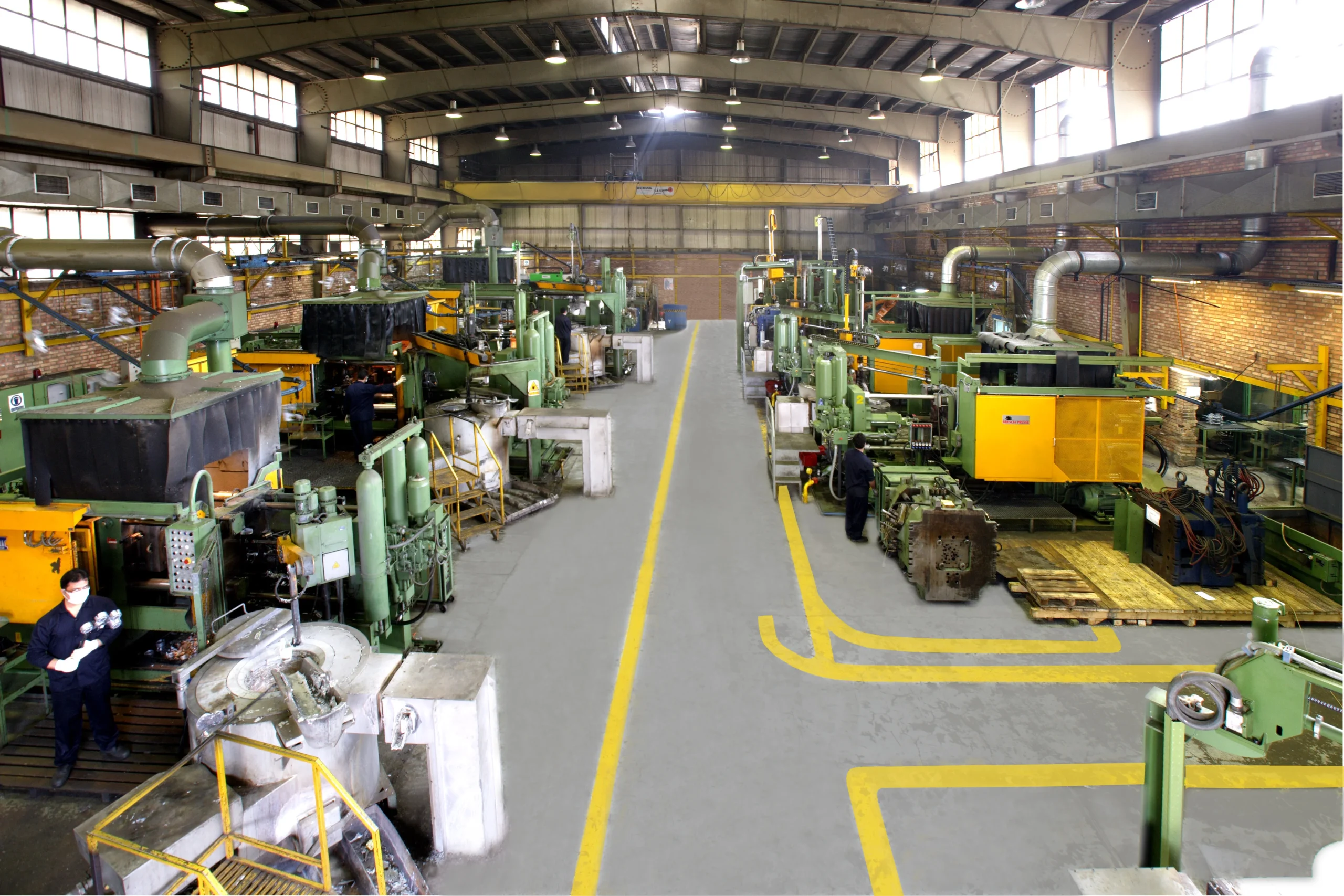

Opening the casts and taking out the pieces Diecasting devices of Cachiran company include 8 cold-working machines as listed below
1650ton (ital presse): this machine possesses an automatic melt pouring robot and a blank holder robot allowing the production of 2-12 kg pieces. Having the analysis system on injection conditions, this machine allows the change, evaluation and control of all of the injection variables representing the related graphs and diagrams
1200ton (idra presse): this machine has an automatic melt pouring robot and using it, one could produce 2-10 kg pieces. This machine includes injection conditions monitor and allows the change and investigation of all of the injection variables
700ton (idra presse): this machine includes an automatic melt pouring robot and creates 2-6 kg pieces. With an injection conditions monitor, this machine could evaluate and change all of the injection variable
420ton (brescia presse) (two machines): by this machine with an aromatic melt pouring robot production of 200 g to 4 kg is possible. This machine has an injection conditions monitor and one could change and evaluate all of the injection variables by this
320ton (idra presse): this machine containing an automatic melt pouring robot can produce 200 g to 1.5 kg pieces. By this machine with an injection conditions monitor, all of the injection variables could be examined and changed
260ton (ital presse): having an automatic melt pouring robot, this machine produces 200 g to 1.5 kg pieces. This machine includes injection conditions monitor and allows the change and examination of all of the injection variables
90ton (ital presse): one could create 10 g to 1 kg pieces using this machine in which there is an injection conditions monitor and all of the injection variables could be investigated and changed
Addition to the aforementioned machines, Cachiran company has a 50 ton hot-working diecasting machine (idra presse) which can produce 10 g to 500 g pieces. This machine with an injection conditions monitor allows the change and evaluation of all of the injection variables
You will see examples of parts produced by Kachiran’s die casting division
